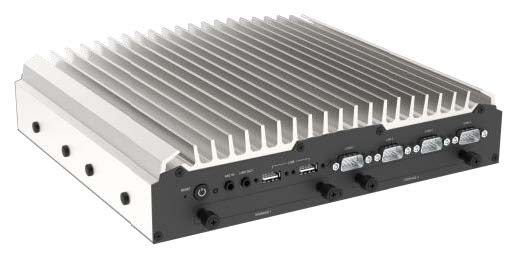

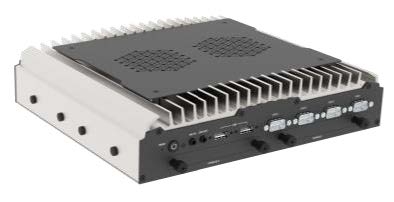

ABOX-V140 14th Gen Rugged In-Vehicle Computer

Description

The Innodisk ABOX-V140 is a rugged in-vehicle computer designed for smarter fleet management, transportation, surveillance and industrial edge applications. Powered by Intel® 14th Gen Core™ processors, with both fan and fanless system options available, the ABOX-V140 delivers high-performance computing in a durable platform built for mobile and harsh-environment deployments.

With rich onboard I/O, the ABOX-V140 provides 5 LAN ports, including 1 Intel® I226 2.5GbE LAN and 4 Intel® I210 GigE LAN ports, with optional 4-port PoE support. It also features 5 USB 3.2 ports, 4 COM RS-232/422/485 ports, 8-bit GPIO, triple display output via HDMI, VGA and DP++, and swappable 2.5" SATA 3.0 SSD trays for simple maintenance and storage access.

Designed for flexible expansion, the ABOX-V140 includes 5 M.2 expansion slots, Mini PCIe, dual Micro SIM slots and optional modules for CAN FD, GNSS, 4G, GPS and Wi-Fi 7 connectivity. With 9V to 48V wide-range DC input, ignition on/off control, programmable delay timer, TPM 2.0 security and MIL-STD-810H vibration and shock resistance, the ABOX-V140 is built for demanding vehicle-mounted environments. The system is also E-Mark certified, making it suitable for in-vehicle deployments where automotive EMC compliance is mandatory for installation in road vehicles. The ABOX-V140 provides a robust and highly configurable platform for fleet, logistics, public transport, edge AI and vehicle-mounted computing systems.
