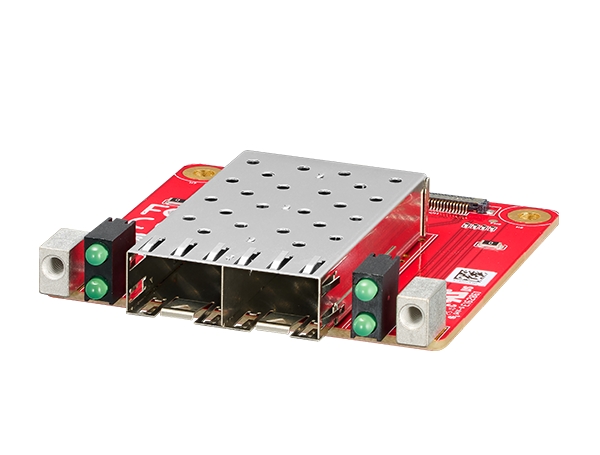

EGPL-G2F1 M.2 to Dual GbE SFP Fibre Network Module
GbE SFP Optical and direct attached Copper modules
- Flexible daughter board with cable to fit into different systems
- Supports common GbE SFP Optical and direct-attached Copper modules
- Supports multi-mode fiber (SX) and single-mode fibre (LX) MSA compliant modules
- Includes high-speed shielding cable and standard PCIe bracket
- Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Supports wide temperature range -40°C to 85°C
£110.00
Image for illustrative purposes only
Description
EGPL-G1F1 and EGPL-G2F1 are M.2 to SFP fibre network modules designed for industrial applications, offering single and dual GbE fibre connectivity respectively.
With intel i210-IS controller and support multi-mode and single-mode fibre.
Operating in wide temperature range of -40°C to 85°C, the modules meet industrial grade shock and ESD standards, and support both windows and Linux systems.
Ideal for smart manufacturing, remote surveillance, and medical communication scenarios requiring high-speed and stable connectivity.
Specification
Protocols
| Primary | Secondary |
|---|
Accessories
| Product Name | Brief Description | |
|---|---|---|
| EZNN-00F3-W1 | 1.25GbE SFP Single-mode Transceiver, 1310nm, 2km, Duplex LC, UDE 23W21 Series / Wide Temperature | view details |
| EZNN-00F8-W1 | 1.25GbE SFP Multi-mode Transceiver, 850nm, 550m, Duplex LC, UDE 23W21 Series / Wide Temperature | view details |
Downloads
- Innodisk 2025 Selection Guide
Flash Storage, DRAM Modules and Embedded Peripherals - EGPL-G2F1
Product Datasheet
