EAC 7100 NVIDIA® Jetson Thor™ T5000™ Embedded AI Computing System
Up to 16 GMSL 1/2 automotive cameras with FAKRA-Z
- NVIDIA® Jetson T5000™ / Jetson T4000™, 2,070 FP4 TFLOPS
- NVIDIA Isaac™ Perceptor Software Stack for AI robot development on NVIDIA Isaac™ ROS
- NVIDIA Holoscan Sensor Bridge for low-latency processing of various cameras and sensors
- Supports up to 16 GMSL 1/2 automotive cameras with Fakra-Z connectors
- Up to 4× 10GigE, 2× 2.5GigE, 4× GigE LAN with 4× PoE+
- 4× Isolated CAN-FD, 2× COM RS232/422/485, 4× USB 3.1, 16-bit Isolated DIO (8DI, 8DO)
- Multiple 5G/4G/LTE/WiFi/BT/GPRS/UMTS connections
- Device remote management by Allxon (Optional)
CALL FOR PRICE

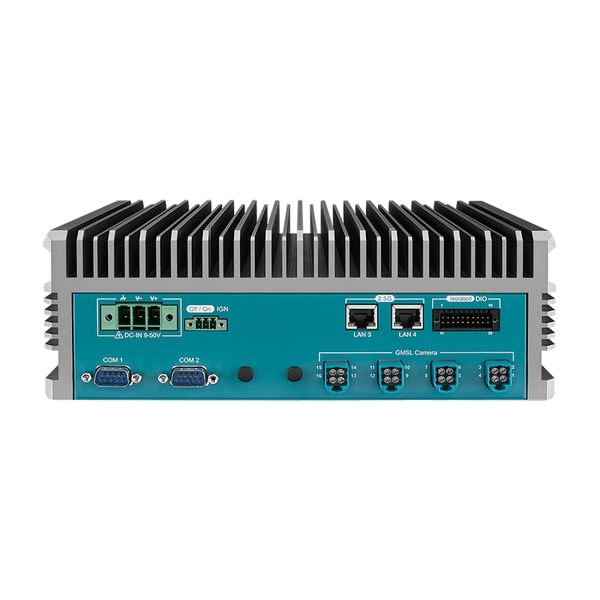

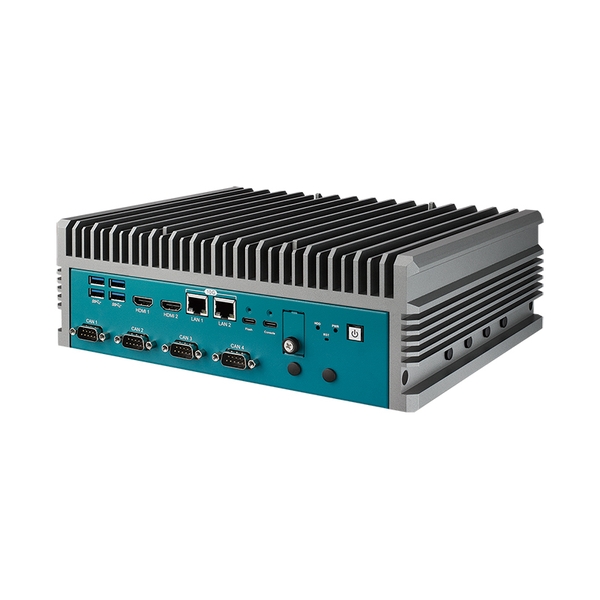

Image for illustrative purposes only
Description
The Vecow EAC-7000 Series is an ultra-performance, Arm-based, fanless Edge AI computing system accelerated by the advanced NVIDIA® Jetson Thor™. At the heart of the EAC-7000 series is the NVIDIA Jetson T5000™/Jetson T4000™, which features up to 14-core Arm® Neoverse™ V3AE CPU and a 2,650-core NVIDIA Blackwell GPU with 5th-gen 96 Tensor Cores. This next-generation architecture delivers up to 2,070 FP4 TFLOPS of AI compute and 128GB of memory, offering breakthrough performance and energy efficiency.
Designed for next-gen robotics and intelligent systems, the EAC-7000 fully supports NVIDIA Isaac™ Perceptor and HoloScan Sensor Bridge for real-time processing and perception—ideal for humanoid robots, autonomous agriculture, and industrial automation. It is purpose-built for Physical AI applications, supporting the latest generative AI models including LLMs (Large Language Models), VLMs (Vision-Language Models), and edge-native agentic AI workflows such as Video Search and Summarization (VSS)—enabling seamless cloud-to-edge deployment across robotics, smart spaces, and autonomous systems.
The series features five scalable models with support for up to 16 GMSL1/2 automotive cameras, multi-Gigabit LAN, PoE+, isolated CAN-FD, and dual SIM connectivity. With wide 9V–50V input, -20°C to 70°C operating temperature, Allxon remote management, and support for JetPack 7.0 SDK and above, the EAC-7000 Series is ready for scalable, production-grade AI deployment—anywhere, anytime.
Specification
| GPU | NVIDIA Jetson T5000 : 2,650-core NVIDIA Blackwell GPU with 5th Gen 96 Tensor Cores NVIDIA Jetson T4000 : 1,536-core NVIDIA Blackwell GPU with 5th Gen 64 Tensor Cores |
|---|---|
| CPU | NVIDIA Jetson T5000 : 14-core Arm® Neoverse™ V3AE 64-bit CPU NVIDIA Jetson T4000 : 12-core Arm® Neoverse™ V3AE 64-bit CPU |
| DRAM | NVIDIA Jetson T5000 : 128 GB 256-bit LPDDR5X DRAM NVIDIA Jetson T4000 : 64 GB 256-bit LPDDR5X DRAM |
| Graphics | 2 HDMI, Up to 7680 x 4320 @30Hz |
| M.2 | - 1 M.2 Key B Socket for dual SIM (3042/3052, USB 3.0) - 1 M.2 Key B Socket (3042/3052/2280, PCIe x2) - 1 M.2 Key E Socket (2230/3042, PCIe x1/USB 2.0/UART3) |
| SSD | 1 M.2 Key M Socket (2280, PCIe x4) |
| Ethernet | LAN 1 to LAN 2 2.5GigE LAN RJ45 Connector by Intel i226 LAN 3 to LAN 4 EAC-7200/7400 : 10GigE LAN RJ45 Connector by Marvell x3610 |
| LAN | LAN 3 to LAN 6 EAC-7300 : IEEE 802.3at (25.5W/48V) 1GigE PoE+ RJ45 LAN LAN 5 to LAN 6 EAC-7400 : IEEE 802.3at (25.5W/48V) 10GigE PoE+ RJ45 LAN |
| Status LEDs | Power, SSD |
| Digital I/O | 16 Isolated DIO (8 DI, 8 DO) |
| Serial Port | 2 COM RS-232/422/485 |
| Weight | 5.5 kg |
| Power Input | DC 9V to 50V |
| Power/Reset Button | - 1 Power Button - 1 Force Recovery Button - 1 Reset Button |
| USB Ports | - 4 USB 3.1 Type-A - 1 USB Type-C for console debug port - 1 USB Type-C for OS flash port |
| Operating Temp | Operating Temp. (with 0.63 m/s air flow) 77W TDP Mode Fanless : -20°C to 45°C, 77W TDP Mode Fan : -20°C to 70°C, 130W TDP Mode Fan : -20°C to 50°C |
| Video input | EAC-7100 : 8 Fakra-Z connectors for GMSL 1/2 automotive cameras EAC-7200 : 4 x4 mini Fakra connectors for GMSL 1/2 automotive cameras |
| Software | - Linux Ubuntu 24.04 - NVIDIA JetPack™ 7.0 and above |
| Dimensions (W x D x H) | 260 mm x 215 mm x 88 mm |
| CAN | 4 Isolated CAN Bus support Flexible Data-rate |
Protocols
| Primary | Secondary |
|---|
Accessories
| Product Name | Brief Description |
|---|
Downloads
- EAC 7000
Product Datasheet
