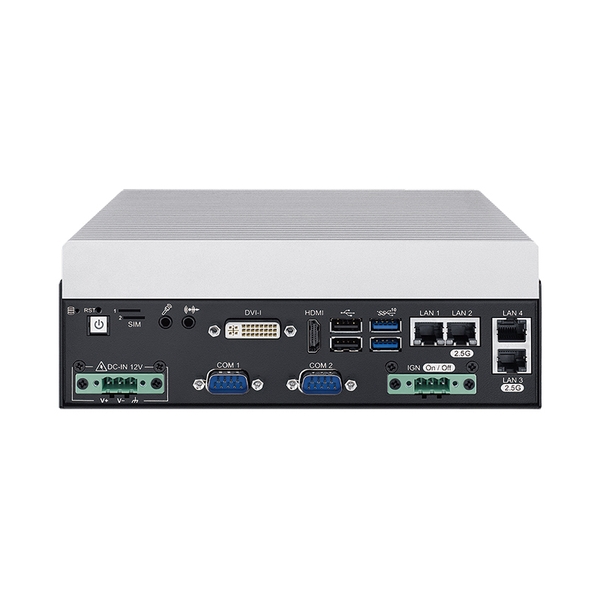

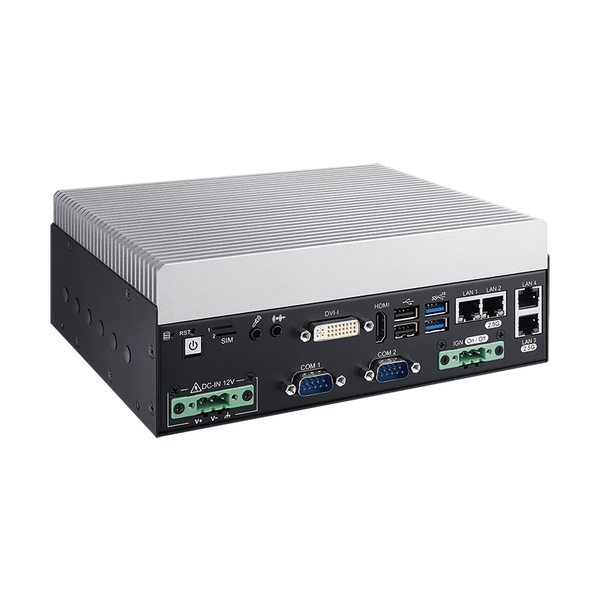

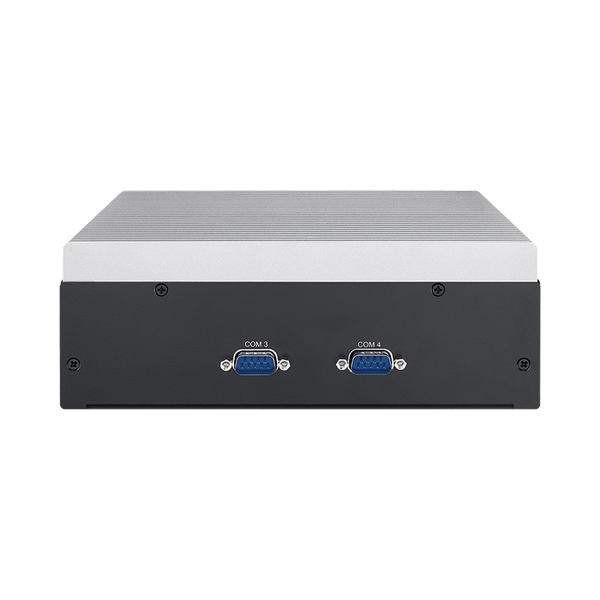

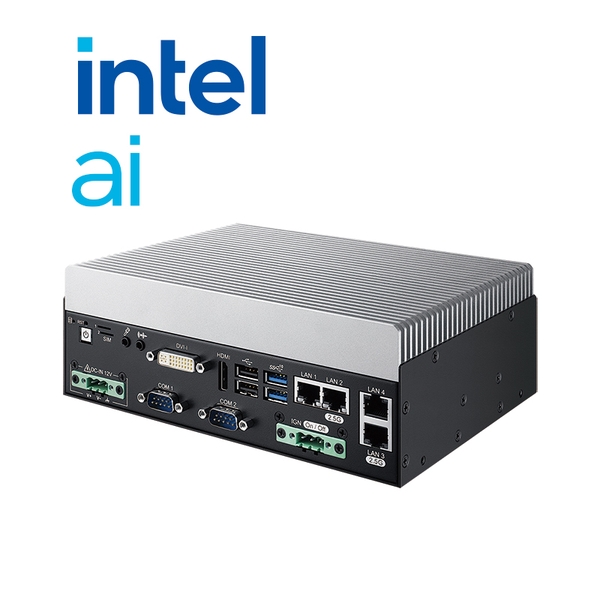

VCM-2000 Intel® Core™ 200S Series and 14/13/12th Gen Intel® Core™ Processor Compact Fanless Embedded Box PC
Fanless -40°C to 60°C Operation
- Intel® Core™ 200S Series and 14th/13th/12th Gen Intel® Core™ processors (Bartlett Lake-S / Raptor Lake-S Refresh / Raptor Lake-S / Alder Lake-S) with Intel® H610E PCH, supporting up to 65W TDP
- Intel® Core™ 200S Series P-core only option available (Bartlett Lake 12P)
- Supports 2× DIMM up to 96GB DDR5 5600MHz memory
- 2× USB 3.2, 2× USB 2.0, 2× COM RS-232/422/485
- 4× independent Intel® GigE LAN ports, including 3× 2.5GbE
- 2× external SIM card sockets supporting WiFi / 4G / 5G / LTE / GPRS / UMTS
- Key E, Key B, and 2× Mini PCIe for PCIe / USB / SIM card expansion
- 12V DC power input, optional 9V to 36V wide-range input with software ignition control
- Supports operating temperatures from -40°C to 60°C
- Intel® Edge System Qualification (ESQ) verified — validated for vertical workloads and AI suitability
CALL FOR PRICE
Image for illustrative purposes only
Description
The Vecow VCM-2000 is a compact fanless embedded computing system designed for demanding vehicle computing, machine vision, video analytics and intelligent automation applications. Powered by Intel® Core™ 200S Series and 14th/13th/12th Gen Intel® Core™ processors with Intel® H610E PCH, the VCM-2000 delivers high-performance edge processing in a rugged, industrial-grade platform.
With support for up to 96GB DDR5 5600MHz memory, multiple high-speed I/O interfaces and four independent Intel® GigE LAN ports, including three 2.5GigE ports, the VCM-2000 is well suited to real-time data acquisition, industrial networking, vision inspection and mobile edge deployments. Its combination of USB, COM, SATA, M.2, Mini PCIe and SIM expansion provides the flexibility required for integrating cameras, sensors, wireless modules and industrial peripherals.
Engineered for reliable operation in harsh environments, the VCM-2000 supports -40°C to 60°C operating temperature, 12V DC input or optional 9V to 36V wide-range DC input, plus software ignition control for in-vehicle applications. With TPM 2.0, watchdog timer, Wake-on-LAN, PXE support and CE/FCC/EN50155/EN50121-3-2 compliance, the VCM-2000 provides a dependable platform for next-generation industrial and transportation edge computing.
Specification
| Processor | -24-core Intel® Core™ 200S Series Processor (Bartlett Lake-S) -24-core 14th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S Refresh) -24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S) -16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S) |
|---|---|
| GPU | Intel® Xe LPG Graphics architecture, up to 4Xe Graphics Engines |
| System Chipset | Intel H610E |
| Memory | 2 DDR5 5600MHz SO-DIMM, up to 96GB |
| Graphics | -1 HDMI 2.0 : Up to 3840 x 2160 @60Hz -1 DVI-I : Up to 1920 x 1080 @60Hz |
| M.2 | -1 M.2 Key E Socket (2230, PCIe x2 /USB 2) -1 M.2 Key B Socket (2280/3042/3052, default PCIe x1/ USB 3.2/ USB 2.0) with SIM |
| Audio | Realtek ALC888S-VD2, 7.1 Channel HD Audio |
| Status LEDs | Power, HDD |
| Expansion | 1 M.2 Key M Socket (2242/2280, PCIe x4) -1 M.2 Key B Socket (2280, PCIe x2, share with expansion) |
| Watchdog | Reset : 1 to 255 sec./min. per step |
| Serial Ports | 4 COM RS-232/422/485 |
| Dimensions | 209.0mm x 150.5mm x 75.0mm |
| Operating Temperature | -35W TDP CPU with heat sink : -40°C to 60°C (-40°F to 140°F) with air flow -65W TDP CPU with fan sink : -40°C to 60°C (-40°F to 140°F) |
| Weight | 2.31kg |
| Power Supply | VCM-2000 : 12V DC-in -VCM-2000A : 9V to 36V wide range DC-in |
| Power | 3-pin Terminal Block : V+, V-, Frame Ground |
| SATA | mSATA 2 SATA III (Mini PCIe Type, 6Gbps, share with expansion) |
| Temperature/Fan monitoring | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| EMC | CE, FCC, ICES, EN50155, EN50121-3-2 |
| Shock and Vibration | IEC 60068-2-64 SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| SATA Storage | 2 SATA III (6Gbps) for SSD/HDD |
| USB Ports | -2 USB 3.2 Type-A -2 USB 2.0 Type-A |
| Remote power on/off | 3-pin Terminal Block/16-mode Software Ignition Control |
| LAN Ports | LAN1 Intel® I219LM GigE LAN, LAN 2 to 4 Intel® I226 2.5 GigE LAN |
| Mini PCI-Express | 1 Full-size Mini PCIe (PCIe x1, SATA, USB 2) -1 Full-size Mini PCIe (PCIe x1, SATA, USB 2) with SIM |
| Shock | IEC 60068-2-27 SSD : 50G @wallmount, Half-sine, 11ms |
| SIM | 2 External SIM Card Sockets |
| Audio input | 1 Mic-in, 1 Line-out |
