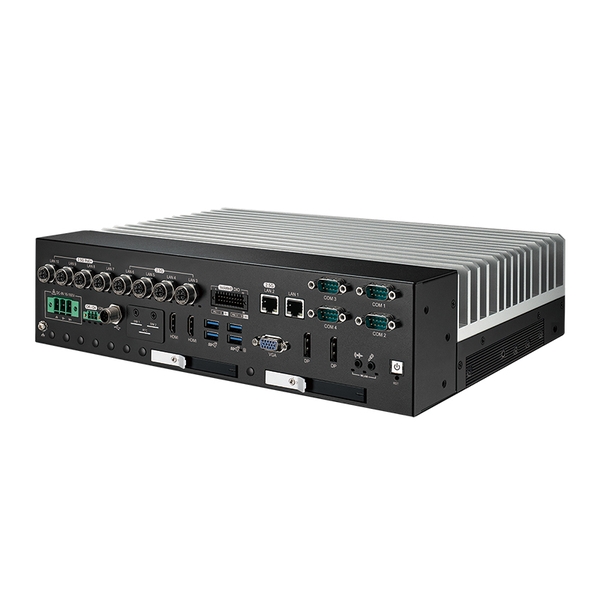

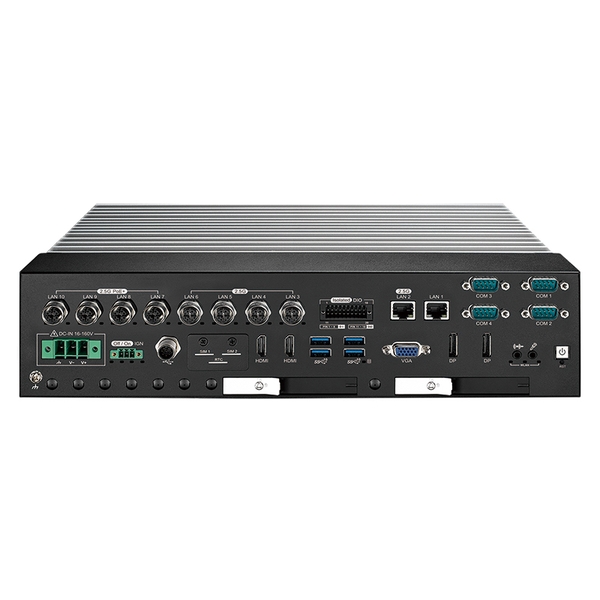

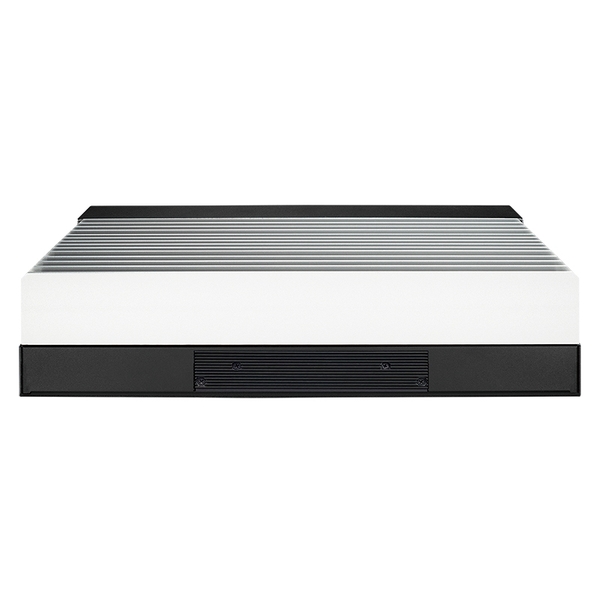

IVX-1000 Intel® Core™ 200S Series and 14/13/12th Gen Intel® Core™ Processor In-Vehicle Computing Workstation
Rail Orientated EN50155, EN50121-3-2, EN45545-2 Fire Protection compliant
- Intel® Core™ 200S Series and 14th/13th/12th Gen Intel® Core™ processor support
- Intel® R680E PCH with support for up to 65W TDP CPU
- Dual DDR5 SO-DIMM support up to 96GB ECC/non-ECC memory
- Optional NVIDIA® Quadro® MXM graphics for advanced AI and vision applications
- Fanless design for railway in-vehicle applications
- 8 independent 2.5GigE LAN M12 X-coded ports with 4 IEEE 802.3at PoE+
- 1 additional 2.5GigE LAN and 1 GigE LAN for flexible networking
- 4 isolated COM RS-232/422/485 ports and 16 isolated DIO
- Up to 6 front-access 2.5" SSD/HDD trays with RAID 0, 1, 5, 10 support
- Multiple 5G, WiFi, 4G, 3G, LTE, GPRS and UMTS expansion options
- 16V to 160V DC power input with 4kV isolation and surge protection
- Software ignition control and optional UPS support for in-vehicle deployment
- Supports Intel® vPro, TCC, TSN and TPM 2.0
- Fully compliant with EN50155:2021 and EN45545-2 railway standards
- OpenVINO™ support for edge AI computing applications
CALL FOR PRICE
Image for illustrative purposes only
Description
The Vecow IVX-1000 ICY is a rugged in-vehicle computing workstation designed for railway, rolling stock, public security, traffic vision and edge AI applications. Powered by Intel® Core™ 200S Series and 14th/13th/12th Gen Intel® Core™ processors with Intel® R680E PCH, the IVX-1000 ICY delivers workstation-grade performance in a fanless, railway-certified platform.
Engineered for demanding mobile and rail environments, the IVX-1000 ICY supports up to 96GB DDR5 memory, optional NVIDIA® Quadro® MXM graphics, high-speed PCIe 4.0, USB 3.2 Gen 2, SATA III and multiple GigE/2.5GigE interfaces. With 8 independent 2.5GigE LAN M12 X-coded ports, including 4 IEEE 802.3at PoE+ ports, plus isolated COM, isolated DIO, dual SIM sockets and up to 6 front-access SSD/HDD trays, the system is ideal for vision-based inspection, onboard surveillance, ADAS, mobile communication and real-time data acquisition.
Built for reliability in harsh conditions, the IVX-1000 ICY features 16V to 160V DC power input, 4kV DC isolation, 500V surge protection, software ignition control and optional UPS support. Fully compliant with EN50155:2021 and EN45545-2, with anti-shock and anti-vibration protection, it provides a robust computing platform for railway and transportation systems requiring high performance, secure manageability and long-term industrial reliability.
Specification
| Processor | 24-core Intel® Core™ 200S Series Processor (Bartlett Lake-S) -24-core Intel® Core™ i9/i7/i5/i3 Processor (14th gen, Raptor Lake-S Refresh) -24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S) -16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S) |
|---|---|
| GPU | -Intel® UHD Graphics 770/730 driven by Intel® Xe Architecture -Independent MXM Graphics : By request |
| System Chipset | Intel® R680E Chipset |
| Memory | 2 DDR5 5200MHz SO-DIMM, up to 96GB |
| Graphics | 1 VGA : Up to 1920 x 1200 @60Hz -2 HDMI : Up to 1920 x 1080 @60Hz -2 DisplayPort : Up to 4096 x 2304 @60Hz (By requested MXM) |
| Expansion Bus | 2 SUMIT Slot (Optional) |
| M.2 | 1 M.2 Key B Socket (3052/2280, PCIe/USB 3, default/USB 2) -1 M.2 Key E Socket (2230, PCIe/USB) |
| Audio | Realtek® ALC888S-VD, 7.1 Channel HD Audio |
| Status LEDs | Power, HDD, PoE, Wireless |
| Digital I/O | 16 Isolated DIO : 8 DI, 8 DO |
| Serial Ports | 4 Isolated COM RS-232/422/485 |
| Watchdog | Reset : 1 to 255 sec./min. per step |
| Operating System | Windows 11, Linux |
| Power Requirement | ups: IVX-1000 ICY -Optional supports 3 stackable 18650 Li Batteries (2.5A/h) -Optional supports Super Cap |
| Power Supply | DC 16V to 160V, Max. support 200W |
| Power | 3-pin Terminal Block : V+, V-, Frame Ground |
| EMC | CE, FCC, EN50155, EN50121-3-2 |
| Shock and Vibration | IEC 61373 : 2010 -Railway Applications : Rolling Stock Equipment, Shock and Vibration Test |
| LAN Ports | LAN 1 Intel® I219LM GigE LAN supports iAMT LAN 2 Intel® I226 2.5GigE LAN supports TSN LAN 3 to LAN 6 Intel® I226 2.5GigE LAN, X-Coded M12 Connector LAN 7 to LAN 10 2.5GigE IEEE 802.3at PoE+ by Intel I226, X-Coded M12 Connector (up to 25.5W/48V each port, total power be supported depends on system config.) |
| Operating Temperature Range | With Air Flow: 35W TDP CPU without GPU : -25°C to 75°C (-13°F to 167°F) 35W TDP CPU with <50W GPU : -25°C to 55°C (-13°F to 131°F) 65W TDP CPU without GPU : -25°C to 65°C (-13°F to 149°F) 65W TDP CPU with <50W GPU : -25°C to 45°C (-13°F to 113°F) |
| Mini PCI-Express | 1 Mini PCIe sockets for PCIe/USB/SIM Card/Optional mSATA |
| SIM | 2 External SIM Card Sockets |

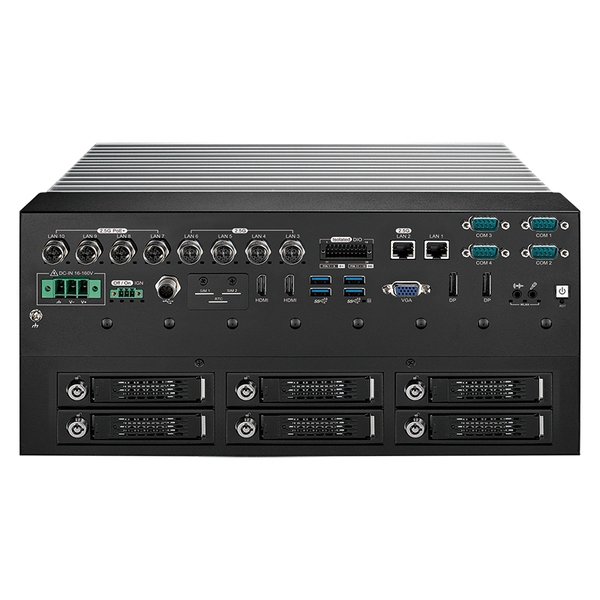

| SATA Storage | IVX-1000 : 2 Front-access 2.5"SSD/HDD Tray IVX-1000 ICY : 6 Front-access 2.5"SSD/HDD Tray (15mm in height) |
| SATA Ports | 1 SATA III (Mini PCIe Type, 6Gbps) |
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| Temperature/Fan monitoring | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| SATA | IVX-1000 : 2 SATA III (6Gbps) support software RAID 0, 1 IVX-1000 ICY : 6 SATA III (6Gbps) support software RAID 0, 1, 5, 10 |
| Remote power on/off | 3-pin Terminal Block/16-mode Software Ignition Control |
| Audio input | 1 Mic-in, 1 Line-out |
| RTC | Front-access RTC Battery |
| USB Ports | USB 3.2 Gen2 - 1 A-coded M12 USB 2.0 with 2-port signal |
