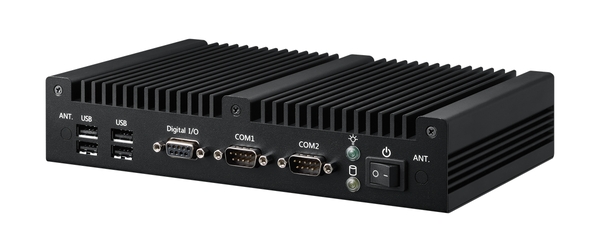

MILES-SYS-4150 Small Box PC with Intel® Core™ Ultra 200 Series Processor, NPU Acceleration and 9–36V DC Input
Compact Fanless Industrial Embedded PC with up to 22.5 TOPS NPU, DDR5 memory and flexible M.2 expansion
- Intel® Core™ Ultra 5 / Ultra 7 processor options, including 225U, 255U and 265H
- Integrated NPU supporting up to 22.5 TOPS for edge AI workloads
- Dual DDR5 SO-DIMM memory, up to 128GB
- 2 x Intel® i226 2.5GbE LAN ports
- 1 x HDMI 2.0 and 1 x DP++ display output
- 4 x USB 3.2 Gen 2, plus 6 x USB 2.0

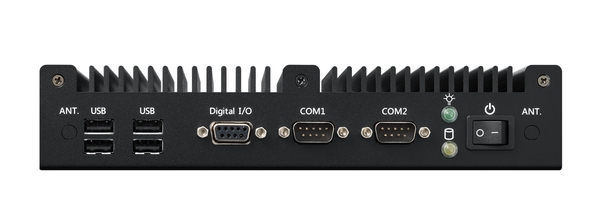

- 2 x RS-232/422/485 serial ports and 8-bit DIO
- Up to 4 x M.2 expansion slots for storage, wireless and additional I/O

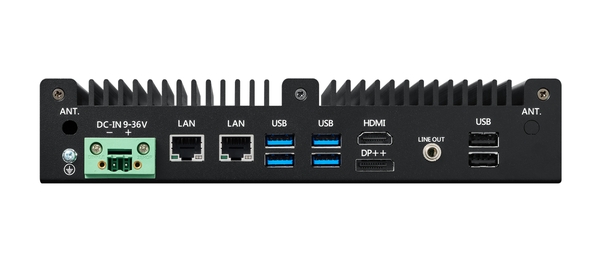

- 9–36V DC wide voltage input via Phoenix connector
- Wide operating temperature support: -20°C to 70°C on selected models
- TPM 2.0, watchdog timer and Windows® 11 IoT Enterprise 2024 LTSC support
- Wall-mountable compact chassis, 225mm x 139mm x 44mm
CALL FOR PRICE
Description
The MILES-SYS-4150 is a compact industrial small box PC designed for edge computing, embedded control, machine vision, automation and AIoT applications.
Powered by Intel® Core™ Ultra processor options, the MILES-SYS-4150 combines high-performance CPU processing with integrated Intel® graphics and an onboard NPU supporting up to 22.5 TOPS for AI acceleration at the edge. With support for up to 128GB DDR5 6400MT/s memory, the system is well suited to demanding industrial workloads where compact size, reliability and expandability are required.
The system provides a strong range of industrial I/O, including dual 2.5GbE LAN, HDMI and DP++ display outputs, multiple USB ports, RS-232/422/485 serial connectivity and 8-bit DIO. Up to four M.2 expansion slots allow flexible configuration for NVMe storage, SATA, Wi-Fi, cellular connectivity or other application-specific expansion.
Designed for industrial deployment, the MILES-SYS-4150 supports 9–36V DC wide voltage input, TPM 2.0 security, programmable watchdog timer and wall mounting. Selected models operate from -20°C to 70°C, making the unit suitable for factory automation, machine control, smart infrastructure, edge AI and embedded industrial computing applications.
Specification
| Processor | Intel® Core™ Ultra processors (formerly Meteor Lake) 265H, 255U, 225U |
|---|---|
| CPU Clock | 5.3 GHz, 5.2 GHz,4.8 GHz, |
| Memory | DDR5 6400MT/s up to 128GB (64GB per SO-DIMM) |
| System Memory | 2 x 262-pin SO-DIMM (Non-ECC) |
| Graphics | Intel® Graphics |
| Display Support | 1 x HDMI 2.0, up to 4K @ 30Hz, 1 x DP++, up to 4K @ 60Hz |
| M.2 | 4 x M.2 Expansion |
| Audio | Realtek ALC888, High Definition Audio |
| LAN | LAN1~2: Intel® i226, up to 2500Mbps |
| COM Ports | COM1~2: RS232/RS422/RS485 |
| GPIO | 1 x 8-bit DIO |
| Operating System | Microsoft Windows® 11 IoT Enterprise 2024 LTSC |
| Dimensions | 225mm x 139mm x 44mm |
| Power Supply | Wide Voltage 9~36V |
| USB V3.0 Standard | 4 USB 3.2 Gen.2 |
| Operating Temperature Range | U: -20°C~70°C; H: -20°C~50°C |
| TPM | Default: fTPM 2.0 |
| Watchdog Timer | Programmable from 1 to 255 Seconds |
| Shock and Vibration | Shock: With SSD: 30G, IEC 60068-2-27, half sine, 11ms duration, Vibration: With SSD: 3G, IEC 60068-2-64, random, 5~500Hz, 1hr/axis |
| EMC Conformity | CE/FCC Class B/RoHS/UKCA |
| USB V2.0 Standard | 6 USB 2.0 |
