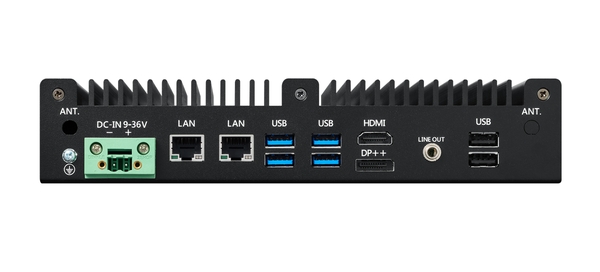

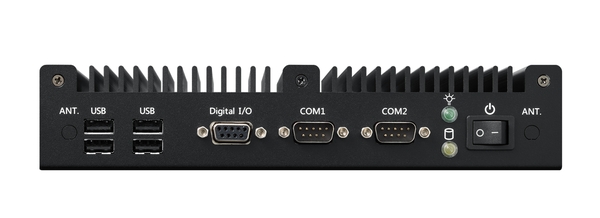

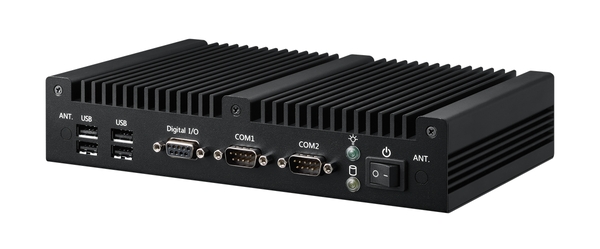

MILES-SYS-4140 Small Box PC with Intel® Core™ Ultra 100 Series Processor, NPU Acceleration and 9–36V DC Input
Compact Fanelss Industrial Embedded PC with integrated NPU, DDR5 memory and flexible M.2 expansion
- Intel® Core™ Ultra 5 / Ultra 7 processor options, including 125U, 155U and 165H
- Integrated NPU supporting up to 22.4 TOPS for edge AI workloads
- Dual DDR5 SO-DIMM memory, up to 96GB
- 2 x Intel® i226 2.5GbE LAN ports
- 1 x HDMI 2.0 and 1 x DP++ display output
- 4 x USB 3.2 Gen 2, plus 6 x USB 2.0
- 2 x RS-232/422/485 serial ports and 8-bit DIO
- Up to 4 x M.2 expansion slots for storage, wireless and additional I/O
- 9–36V DC wide voltage input via Phoenix connector
- Wide operating temperature support: -20°C to 70°C on selected models
- TPM 2.0, watchdog timer and Windows® 11 IoT Enterprise 2024 LTSC support
- Wall-mountable compact chassis, 225mm x 139mm x 44mm
CALL FOR PRICE
Description
The MILES-SYS-4140 is a compact industrial small box PC designed for embedded computing, edge AI, automation, machine control and industrial IoT applications.
Powered by Intel® Core™ Ultra processor options, including Intel® Core™ Ultra 5 125U, Core™ Ultra 7 155U and Core™ Ultra 7 165H, the MILES-SYS-4140 combines efficient processing performance with integrated Intel® Xe LPG Graphics and an onboard NPU delivering up to 22.4 TOPS. This makes it well suited to edge workloads where local AI acceleration, compact size and reliable industrial operation are required.
The system supports up to 96GB DDR5 5600MT/s memory across two SO-DIMM sockets and offers extensive connectivity, including dual Intel® i226 2.5GbE LAN, HDMI 2.0, DP++, USB 3.2 Gen 2, USB 2.0, RS-232/422/485 serial ports and 8-bit DIO. Four M.2 expansion slots provide flexible options for NVMe/SATA storage, Wi-Fi, cellular connectivity and application-specific expansion.
Designed for industrial installations, the MILES-SYS-4140 features 9–36V DC wide voltage input via Phoenix connector, TPM 2.0 security, programmable watchdog timer, wall mounting and selected operating temperature support from -20°C to 70°C. The system is suitable for smart manufacturing, edge AI, automation control, data acquisition, kiosk, transport and embedded industrial computing applications.
Specification
| Processor | Intel® Core™ Ultra processors (formerly Meteor Lake) 165H, 155U, 125U |
|---|---|
| CPU Clock | 5.0 GHz, 4.8 GHz, 4.3 GHz |
| Memory | DDR5 5600MT/s Up to 96GB |
| System Memory | 2 x 262-pin SO-DIMM (Non-ECC) |
| Graphics | Intel® Xe LPG Graphics |
| Video Interfaces | 1 x HDMI 2.0, up to 4K @ 30Hz 1 x DP++, up to 4K @ 60Hz |
| M.2 | 4 Expansion Slots |
| Audio | Realtek ALC888, High Definition Audio |
| LAN | LAN1~2: Intel® i226, up to 2500Mbps |
| COM Ports | COM1~2: RS232/RS422/RS485 |
| GPIO | 1 x 8-bit DIO |
| Operating System | Microsoft Windows® 11 IoT Enterprise 2024 LTSC |
| Dimensions | 225mm x 139mm x 44mm |
| Power Supply | Wide Voltage 9~36V |
| USB V3.0 Standard | 4 USB 3.2 Gen.2 |
| Operating Temperature Range | U: -20°C~70°C; H: -20°C~50°C |
| TPM | Default: fTPM 2.0 |
| Watchdog Timer | Programmable from 1 to 255 Seconds |
| Shock and Vibration | Shock: With SSD: 30G, IEC 60068-2-27, half sine, 11ms duration Vibration: With SSD: 3G, IEC 60068-2-64, random, 5~500Hz, 1hr/axis |
| EMC Conformity | CE/FCC Class B/RoHS/UKCA |
| USB V2.0 Standard | 6 USB 2.0 |
