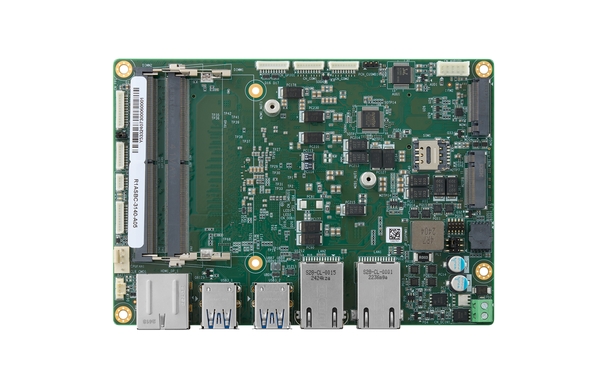

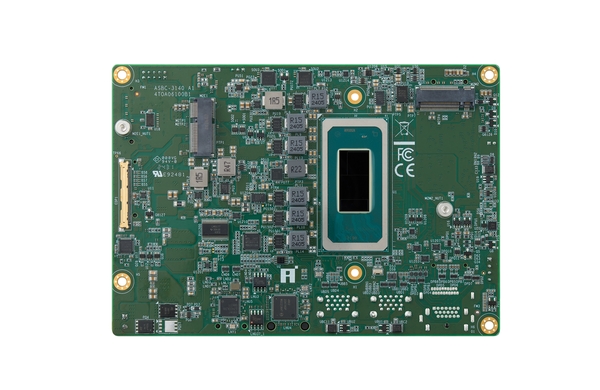

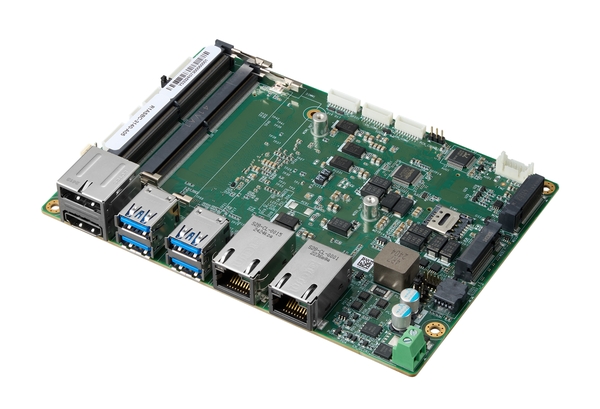

MILES-BD-3150 3.5" SBC with Intel® Core™ Ultra 200 Series Processor, Integrated NPU and 9–36V DC Input
Compact 3.5" single board computer with Intel® Core™ Ultra 200-series processing
- Intel® Core™ Ultra 5 / Ultra 7 processor options, including 225U, 255U and 265H
- NPU integrated in SoC for edge AI workloads
- Dual DDR5 SO-DIMM memory, up to 128GB
- 2 x Intel® i226 2.5GbE LAN ports

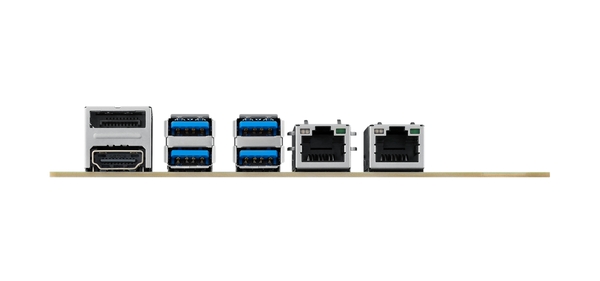

- 1 x HDMI 2.0, 1 x DP++ and 1 x eDP display output
- 4 x USB 3.2 Gen 2 and 2 x USB 2.0
- 2 x RS-232/422/485 serial ports and 8-bit GPIO
- Up to 4 x M.2 expansion slots for storage, wireless and additional I/O
- 9–36V DC wide voltage input via internal Phoenix header
- U-series SKU supports 0°C to 60°C, with -40°C to 85°C support by optional heatsink
- TPM 2.0, watchdog timer and Windows® 11 IoT Enterprise 2024 LTSC support
- Compact 3.5" SBC form factor, 146mm x 102mm x 16.34mm
CALL FOR PRICE
Description
The MILES-BD-3150 is a compact 3.5" single board computer designed for embedded computing, edge AI, industrial automation, machine control and space-constrained IoT applications.
Powered by Intel® Core™ Ultra 200-series processor options, including Intel® Core™ Ultra 5 225U, Core™ Ultra 7 255U and Core™ Ultra 7 265H, the MILES-BD-3150 combines efficient CPU performance with integrated graphics and an NPU integrated in the SoC. This makes it suitable for local AI processing, vision systems, control applications and embedded industrial workloads.
The board supports up to 128GB DDR5 6400MT/s memory across two SO-DIMM sockets and provides a strong I/O set for industrial integration, including dual Intel® i226 2.5GbE LAN, HDMI 2.0, DP++, eDP, USB 3.2 Gen 2, USB 2.0, RS-232/422/485 serial ports, SMBus and 8-bit GPIO. Four M.2 expansion slots allow configuration for NVMe/SATA storage, wireless connectivity, cellular modules and additional application-specific expansion.
Designed for embedded and industrial environments, the MILES-BD-3150 supports 9–36V DC wide voltage input via internal Phoenix header, TPM 2.0 security and a programmable watchdog timer. The U-series SKU supports operation from 0°C to 60°C, with -40°C to 85°C support available by optional heatsink, making it ideal for compact industrial systems, edge devices, automation controllers, kiosks, smart infrastructure and OEM embedded platforms.
Specification
| Processor | Intel® Core™ Ultra Processors (Series 2) (formerly Arrow Lake) |
|---|---|
| CPU | Ultra 7 Processor 265H, Ultra 7 Processor 255U, Ultra 5 Processor 225U |
| CPU Clock | 5.3 GHz, 5.2 GHz, 4.8Ghz |
| Memory | 2 x 262-pin SO-DIMM (Non-ECC support) |
| DRAM | DDR5 6400MT/s 128GB (64GB per SO-DIMM) |
| Graphics | Intel® Graphics |
| Display Support | 1 x HDMI 2.0, up to 4K @ 30Hz 1 x DP++, up to 4K @ 60Hz |
| LAN | 2 x i226 2.5GB/s |
| COM Ports | COM1~2: RS232/RS422/RS485 |
| GPIO | 8-bit DIO |
| Dimensions | 146mm x 102mm x 16.34mm(3.5” SBC Form Factor) |
| Power Supply | DC 9~36V |
| USB V2.0 Standard | 6 |
| USB V3.0 Standard | 4 USB 3.2 Gen.2 x1 (Type A) |
| Operating Temperature Range | U series SKU: 0°C~60°C, -40°C ~85°C (by optional heatsink) H series SKU: 0°C~60°C |
| TPM | Default: fTPM 2.0 |
| Watchdog Timer | Programmable from 1 to 255 Seconds |
| EMC Conformity | Microsoft Windows® 11 IoT Enterprise 2024 LTSC |
Protocols
| Primary | Secondary |
|---|
Accessories
| Product Name | Brief Description |
|---|
Downloads
- MILES_BD-3150
Product Datasheet
