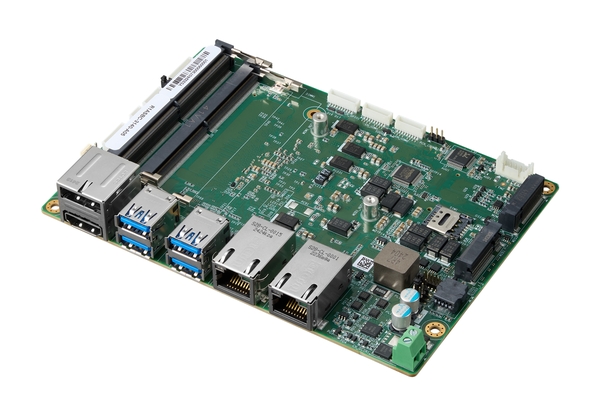

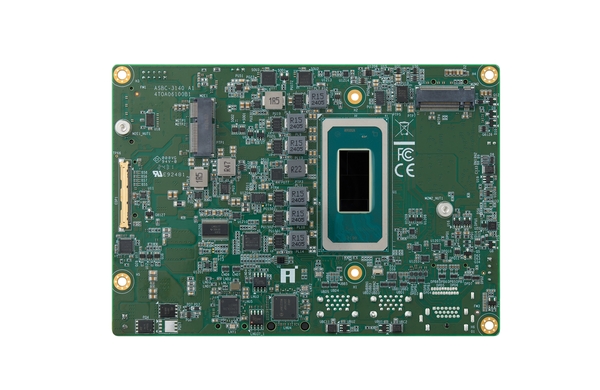

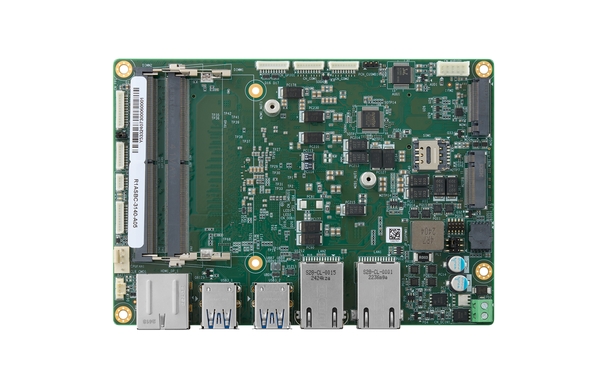

MILES-BD-3140 3.5" SBC with Intel® Core™ Ultra 100 Series Processor, Integrated NPU and 9–36V DC Input
Compact 3.5" single board computer with Intel® Core™ Ultra processing, DDR5 memory and flexible M.2 expansion
- Intel® Core™ Ultra 5 / Ultra 7 processor options, including 125U, 155U and 165H
- NPU integrated in SoC for edge AI workloads
- Dual DDR5 SO-DIMM memory, up to 96GB
- 2 x Intel® i226 2.5GbE LAN ports

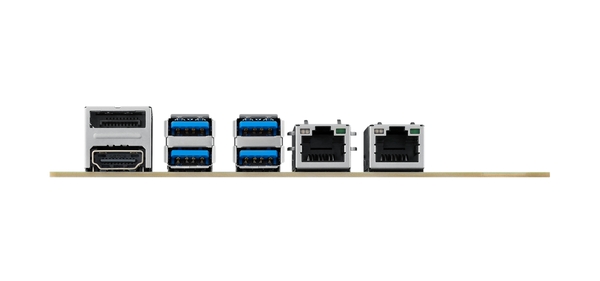

- 1 x HDMI 2.0, 1 x DP++ and 1 x eDP display output
- 4 x USB 3.2 Gen 2 and 2 x USB 2.0
- 2 x RS-232/422/485 serial ports and 8-bit GPIO
- Up to 4 x M.2 expansion slots for storage, wireless and additional I/O
- 9–36V DC wide voltage input via internal Phoenix header
- U-series SKU supports 0°C to 60°C, with -40°C to 85°C support by optional heatsink
- TPM 2.0, watchdog timer and Windows® 11 IoT Enterprise 2024 LTSC support
- Compact 3.5" SBC form factor, 146mm x 102mm x 16.34mm
CALL FOR PRICE
Description
The MILES-BD-3140 is a compact 3.5" single board computer designed for embedded computing, industrial automation, edge AI, machine control and space-constrained IoT applications.
Powered by Intel® Core™ Ultra processor options, including Intel® Core™ Ultra 5 125U, Core™ Ultra 7 155U and Core™ Ultra 7 165H, the MILES-BD-3140 combines efficient processing performance with integrated Intel® Xe LPG Graphics and an NPU integrated in the SoC. This makes it suitable for embedded systems requiring local processing, AI acceleration and reliable industrial connectivity.
The board supports up to 96GB DDR5 5600MT/s memory across two SO-DIMM sockets and provides a strong range of I/O for system integration, including dual Intel® i226 2.5GbE LAN, HDMI 2.0, DP++, eDP, USB 3.2 Gen 2, USB 2.0, RS-232/422/485 serial ports, SMBus and 8-bit GPIO. Four M.2 expansion slots allow flexible configuration for NVMe/SATA storage, wireless connectivity, cellular modules and application-specific expansion.
Designed for embedded and industrial deployments, the MILES-BD-3140 features 9–36V DC wide voltage input via internal Phoenix header, TPM 2.0 security and a programmable watchdog timer. U-series models support operation from 0°C to 60°C, with -40°C to 85°C support available by optional heatsink, making the board ideal for OEM embedded platforms, smart manufacturing, automation controllers, kiosks, edge devices and compact industrial systems.
Specification
| Processor | Intel® Core™ Ultra processors (Series 1) formerly Meteor Lake |
|---|---|
| CPU Clock | 5 GHz, 4.8 GHz, 4.3 Ghz |
| CPU | Ultra 7 Processor 165H, Ultra 7 Processor 155U, Ultra 5 Processor 125U |
| Memory | 2 x 262-pin SO-DIMM (Non-ECC support) |
| DRAM | 96GB (48GB per SO-DIMM) DDR5 5600MT/s |
| Display Support | 1 x HDMI 2.0, up to 4K @ 30Hz 1 x DP++, up to 4K @ 60Hz |
| Graphics | Intel® Xe LPG Graphics Up to 128 EUs |
| Display | 1 x eDP, up to 4K @ 120Hz (eDP1.4b) |
| M.2 | 4 x Expansion |
| Audio | Realtek ALC888, High Definition Audio |
| LAN | LAN1~2: Intel® i226, up to 2500Mbps |
| GPIO | 8-bit DIO |
| COM Ports | COM1~2: RS232/RS422/RS485 |
| Operating System | Microsoft Windows® 11 IoT Enterprise 2024 LTSC |
| Dimensions | 146mm x 102mm x 16.34mm(3.5” SBC Form Factor) |
| Power Supply | DC 9~36V |
| Operating Temperature Range | U series SKU: 0°C~60°C, -40°C ~85°C (by optional heatsink) H series SKU: 0°C~60°C |
| TPM | Default: fTPM 2.0 |
| Watchdog Timer | Programmable from 1 to 255 Seconds |
| EMC Conformity | CE/FCC Class B/RoHS/UKCA |
| USB V2.0 Standard | 2 |
| USB V3.0 Standard | 4 USB 3.2 Gen.2 x1 (Type A) |
